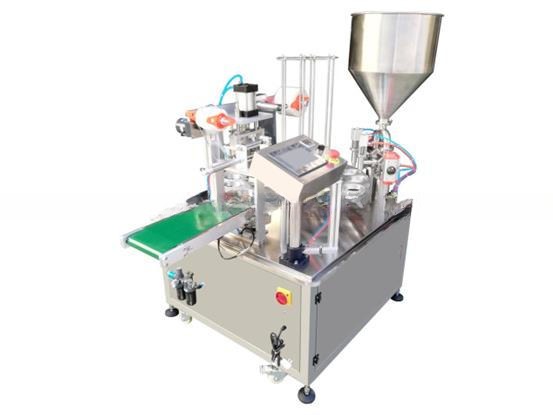

Plastic Packaging Material 2000BPH Full Automatic Rotary Cup Juice Filling and Sealing Machine

Machinery Capacity : 2000BPH, 1000BPH

Application : Food, Beverage

Packaging Type : Cup

Packaging Material : Plastic, Other

Automatic Grade : Automatic

Driven Type : Pneumatic

Voltage : 220V/380V/415V/440V/480V

Place of Origin : Shanghai, China

Brand Name : NC

Dimension(L*W*H) : 1200*1200*1800mm

Weight : 380 KG

Warranty : 1 Year

Key Selling Points : Long Service Life

Filling Material : Milk, Water, Juice

Filling Accuracy : 100%

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine

After-sales Service Provided : Engineers available to service machinery overseas

Certification : CE

Type : Filling Machine

Condition : New

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location : Pakistan, Argentina, Colombia

Warranty of core components : 1 Year

Marketing Type : HOT SALE 2022

Packaging Details : Standard export wooden case

Port : Shanghai

Supply Ability : 30 Set/Sets per Month

Price : $6,500.00/sets 1-4 sets

MOQ : 1 set

Contact Now

Full Automatic Rotary Cup Filling and Sealing Machine For Water, Juice, Milk, Yogurt,Honey

Introduction:

This machine is a full automatic packaging production line. This machine adopts stainless steel fuselage, accords with hygienic requirements and cleanliness.

It can be applied to plastic or paper cups, from automatic load cups, quantitative filling, heat sealing system, automatic membrane cutting and waste film recovery and other functions, and a series of processes can be automatically completed.

We possess more than 25 years experience of production in this line. The advanced technology and equipment in the industry adopt the famous brand control system and pneumatic components in Japan, Taiwan and China, which has the characteristics of low failure rate, stable operation and long service life.

Plastic Packaging Material 2000BPH Full Automatic Rotary Cup Juice Filling and Sealing Machine

[Main Functional Structure of Equipment]

Illustration	Description
	[Drive and Model Traction System]: Including Drive Motor, Reducer and Smooth Drive, as well as the traction drive chain, positioning device.
	[Auto load cup]: The cups will be loaded pcs by pcs. The sensor will detect the cup, if there is cup put inside, the filling, load lid, sealing will work; if there is not cup, the filling, load lid, sealing won’t work to avoid waste and improve the automation degree.
	[Filling system]: Adopting the piston filling method, with high precision Mixing: Rotate to mix the sauce with small granule
	[Sealing system]: Including heating and constant temperature control parts, temperature sensors, sealing devices, thermal sealing plates and thermal heads, pneumatic sealing moving parts.
	[Automatic cup delivery system]: The finished cup will be support and pushed out and transmitted automatically.
	[Electrical control system]: by the control circuit, power supply circuit, electrical protection, safety, the emergency stop device and other components.
	[Pneumatic system]: by pneumatic triple, electronically controlled reversing valve, gas protection, gas path, Components such as joints, etc.
	[Equipment Material]: The frame is made of stainless steel, and cup mould of the equipment is made of stainless steel.

Plastic Packaging Material 2000BPH Full Automatic Rotary Cup Juice Filling and Sealing Machine

Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water,cola, milk, juice and vinegar,oil, we are profession for making it. If anyone who is interested in such field wants to buy the whole equipments and machines, pls contact us freely.

We warmly welcome customer to visit our factory at any time,you will see the machine working and running conditon in our factory!
